SpaceCable V22 Enhancements

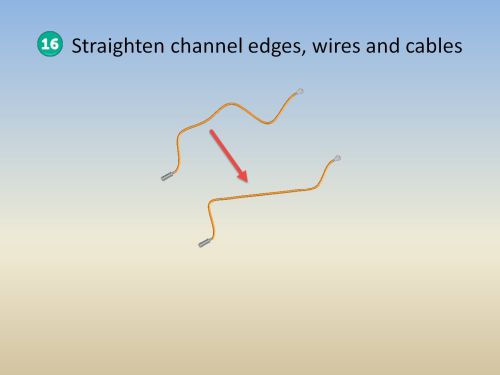

Straighten cabling elements
For wires, cables and channel edges, user can select two interpolation points or two 2 fixtures. For cables, you can also delete all points and create a cable between its end connectors.
View Video

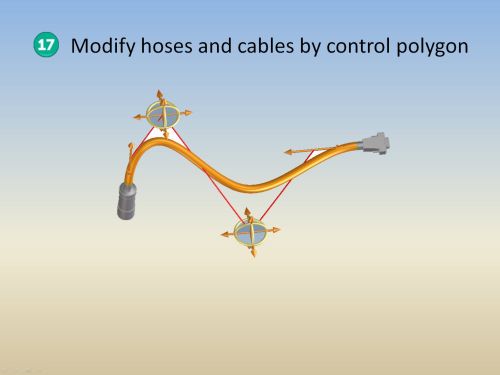

Modify hoses and cables
A new method is introduced to modify splines by their control polygons, which allows smoother modifications on curves. This enables to avoid bend radius violations by dynamic modifications.
View Video
Rotation of hydraulic fittings
With this new function users can rotate non-straight fittings quickly and precisely for 'what-if' analyses with one-click.
View Video

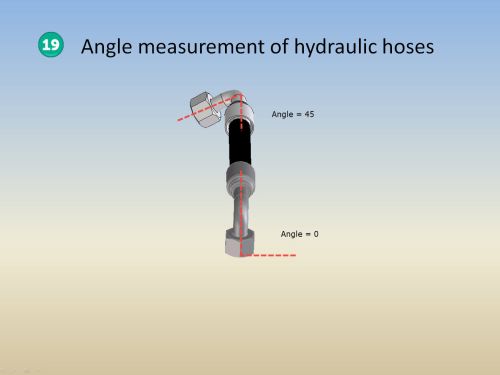

Measurement of hoses
Users can inquire angles of hydraulic hoses for correct hose fitting crimping.
View Video
