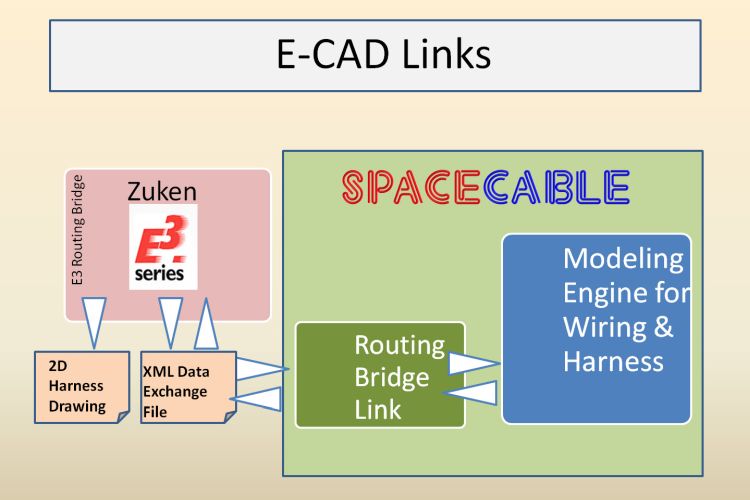

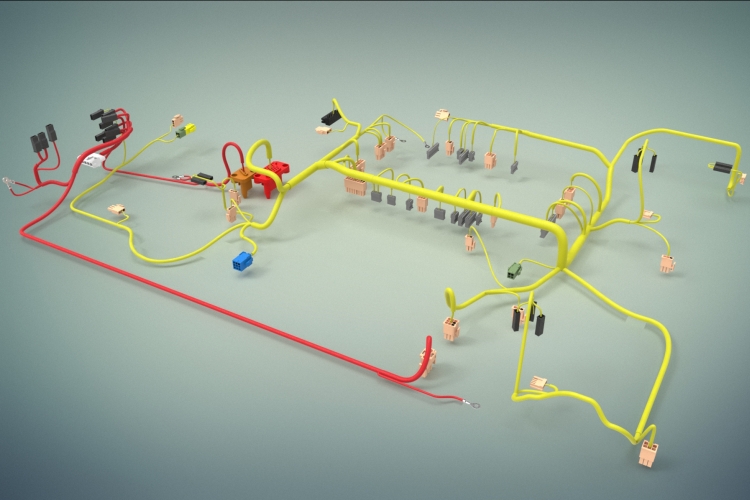

SpaceCable add-on for the bi-directional interface to Zuken's E3.series software solution.  Zuken's E3.series is used for documenting and detailing electrical  design projects. Its flexibility supports the entire process from definition and design, through manufacturing and maintenance. Electrical harness data such as connectors, terminals, splices and netlist information are transferred to SpaceCable, where harness engineers route the cables in 3D. The wire length and harness structure data is then sent back to E3.Formboard, where the final details are added for harness manufacturing.

Strengths and Advantages

  • Based on customizable XML format
  • Transfer of components and connections from E3.series
  • Transfer lengths and segments back to E3.series
  • Segment thickness vizualisations and  minimum bend radius checks
